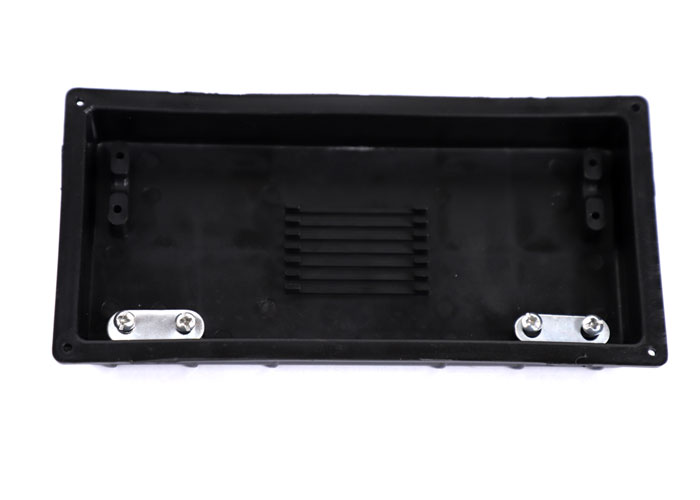

FA-SL -121
Fiber optic joint enclosure is mainly used for protecting the fiber optic junction between two cables and reserves a section of fiber optic for maintenance in the box. The box has good leak-proof, anti-water and damp-proof feature and its power line is corrosion resistant.
There are two types of the junction box, central and terminal one. The central type is used in the central part of the line to protect the two butted cables while the terminal type is used in the end of the line for branching in the cable line or protecting the connection of the fiber optic in the cable and the jumper.
Features
- Suitable for splicing upto 6 F
- Provided scope for Straight/ Branch Joints
- Easy re-entry and closing
- Wall or pole mountable
- Useful for CATV and FTTH Applications
Application
- Suitable for aerial, pipelined direct buried applications
- Suitable for common fiber cables and ribbon cables
- Suitable for straight - through as well as for branch joints to seal and protect splices, fusion, layout and storage of the fiber cables.
- Apply to FTTx, ATM, CATV, HFC
Technical Specification
| Item | Parameters |
|---|---|
| Dimensions | L 180 X W 80 X H 25MM |
| Material | ABS / POLYPROPYLENE |
| Installation | Wall and Pole mountable |
| Working Temperature | -20oC + 60oC |
| Relative Humidity | <95% (at 40oC) |
